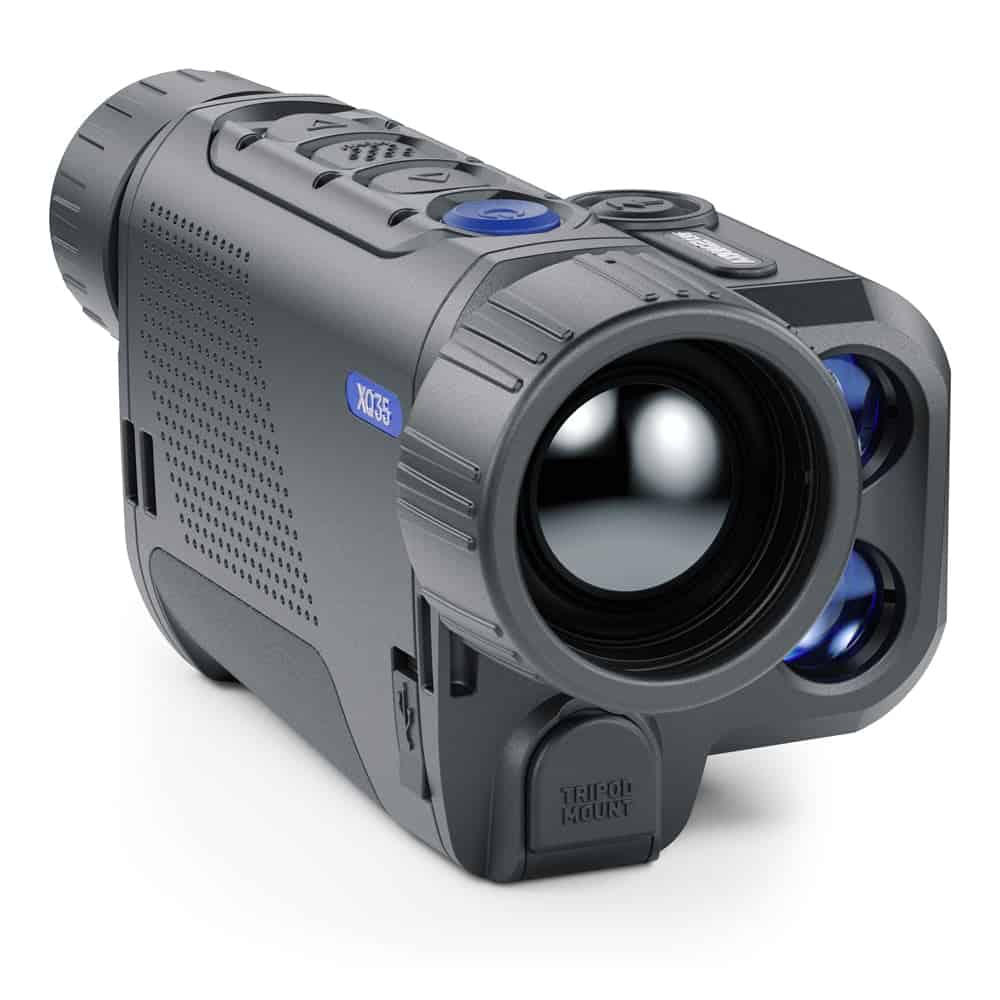

Pulsar Axion 2 LRF XQ35 Thermal Monocular
$3,200.00
PLEASE CONTACT US PRIOR TO PURCHASING AS AVAILABILITY ON ALL PULSAR PRODUCT VARIES DUE TO SUPPLY CONSTRAINTS. Call us on 0427312312 or email bristleup@live.com.au
Available on backorder
PLEASE CONTACT US PRIOR TO PURCHASING AS AVAILABILITY ON ALL PULSAR PRODUCT VARIES DUE TO SUPPLY CONSTRAINTS. Call us on 0427312312 or email bristleup@live.com.au
Better Quality, Better Price!
The Axion 2 LRF XQ35 thermal imaging devices are using revised imaging optimisation for varying conditions when high-quality rendering is requried for observation of both the target and its surrounds. Axion 2 LRF XQ35 are offering smooth filtering and finer contrast / brightness controls, combined with new signal amplification in three new levels, giving the user greater long- range detection for greater opportunities to detect targets through varying temperature / weather conditions.
Highly sensitive thermal imaging sensor
The Axion XQ’s 384×288 @ 17 µm thermal imaging sensor with NETD 40mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager.
Light-weight and Rugged Magnesium Alloy Housing
Housing made from light-weight magnesium alloy ensures high structural rigidity and ruggedness. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.
Detection range more than 1300 meters
A powerful F38/1.2 objective lens combined with a 384×288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1350 m away in complete darkness.
Full-Colour, HD AMOLED Display
Extended Battery Life. Up to 11 hours on a single charge.
An APS5 rechargeable battery will give you up to 11 hours of operation, with just a single charge. The battery can be removed from the device housing and swapped with a new one in no time. The battery can be easily recharged in the provided charger or left in the device and connected to an external power supply (Power bank, PC, in car charger – via USB-C). The device is also capable of being run by an external power source. Â
 Pulsar Axion 2 LRF XQ35 Specifications
| Main | Â |
|
Sensor
|
384×288 pix. @ 17 µm (NETD <?? mK)
|
|
Objective lens
|
F35/1.0
|
|
Magnification, x
|
2 – 8 (x4 zoom)
|
|
Field of view (HxV), degrees / m@100m
|
10.7 x 8 / 18.2
|
|
Detection range, m
|
1300 |
|
 Sensor
|
 |
|
Type
|
uncooled
|
|
Resolution, pixels
|
384×288 |
|
Pixel pitch, µm
|
17 |
|
Frame rate, Hz
|
50
|
|
 Optics
|
Â
|
|
Objective lens
|
F35/1.0
|
|
Magnification, x
|
2 – 8 (4x zoom)
|
|
Field of view (HxV), degrees / m @ 100 m
|
10.7×8 / 18.2
|
|
 Display
|
Â
|
|
Type
|
AMOLED
|
|
Resolution, pixels
|
640×400 |
|
 Range Performance
|
Â
|
|
Detection range, m
|
1300
|
|
 Laser Rangefinder
|
Â
|
|
Safety class for laser equipment according to IEC 60825-1:2014
|
–
|
|
Wavelength, nm
|
905
|
|
Max. measuring range, m
|
1000
|
|
Measurement accuracy, m
|
± 1
|
|
 Video Recorder
|
Â
|
|
Video / photo resolution, pixel
|
528×400
|
|
Video / photo format
|
.mp4 / .jpg
|
|
Built-in memory, Gb
|
16 |
|
 Wi-Fi
|
Â
|
|
Wireless Protocol
|
Wi-Fi
|
|
Wireless Standard
|
IEEE 802.11 b/g/n/ac
|
|
Frequency, GHz
|
2.4 / 5 Ghz
|
|
 Environmental Characteristics
|
Â
|
|
Degree of protection
|
IPÐ¥7
|
|
Operating temperature range, °С
|
-25 – +40
|
|
 Power Supply
|
Â
|
|
Output voltage, V
|
3.0 – 4.2
|
|
Battery type
|
APS 5 Li-Ion Battery Pack
|
|
Capacity, mAh
|
4900 mAh |
|
Operating time on battery pack (at t=22°C), h *
|
11
|
|
External power supply, V
|
5V, 9V (USB Type-C)
|
|
 Weight & Size
|
Â
|
|
Body Material
|
Magnesium Alloy
|
|
Dimensions, mm
|
152x74x75
|
|
Weight, kg
|
0.35
|
|
 Warranty
|
Â
|
|
Warranty on Device, years
|
3
|
|
Warranty on Batteries, years
|
1
|
|
 Trade Data
|
Â
|
|
SKU (Model #)
|
77479 |
