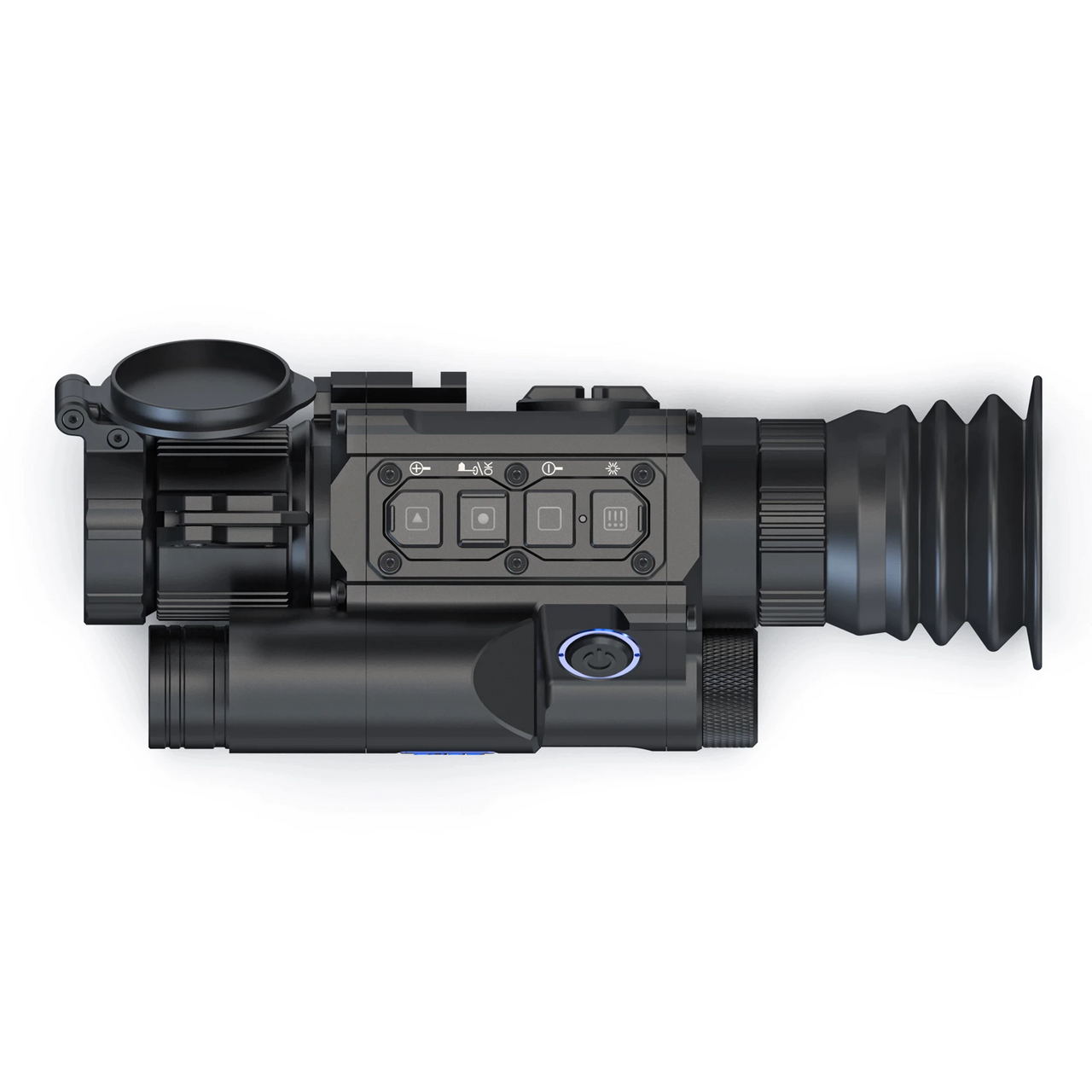

NV008S – Digital Night Vision Riflescope by PARD
The Pard NV008S is a new and improved digital night vision riflescope, upgraded from the original NV008P. The NV008S is designed as a long range viewing night vision device with two choices of lens size with differing base magnifications. Either a 50mm lens with 4.5x magnification (up to 9x) or the 70mm lens with 6.5x magnification (up to 13x). With 1080p resolution sensor, both day & night image quality is exceptional. The LRF model includes an Integrated Laser Rangefinder, capable of measuring distances of up to 1200 meters.
Key Features;
- Ballistic Calculator
- 1200mtr Integrated Laser Rangefinder (LRF model only)
- Highly Sensitive, Low Light Camera – up to 0.001lux
- Recoil-Activated Video Recording
- “PARD VLEA” Improved Image Enhancement
- “PARD 2K” 1080p sensor resolution
Other Features;
- 1920×1080 (1080p) optical sensor
- 50mm (or 70mm) objective lens, 4.5x (or 6.5x) base magnification
- 850nm IR illuminator (350mtr IR range)
- Optical Laser Pointer
- Mounts to your rifle with a picatinny mount (included)
- 1x 18650 removeable battery (+6hrs operating time)
- Micro SD storage for media recording, WiFi connectivity
PARD NV Product Specifications;
| MODEL |
NV007V |
NV007S |
NV008S (LRF) |
|
Optical Sensor
|
1920 x 1080
|
1920 x 1080
|
1920 x 1080
|
|
Objective lens
|
16mm
|
16mm
|
50mm (70mm)
|
|
Magnification, x
|
4x – 14x | 4x – 14x |
4.5x – 9x (6.5x – 13x)
|
|
Field of view (HxV), degrees / m @ 100mtrs
|
– | – | – |
|
Detection range, m
|
300 (IR range)
|
300 (IR range) |
350 (IR range)
|
|
Sensor
|
|||
|
Type
|
–
|
– |
–
|
|
Resolution, pixels
|
1920 x 1080 | 1920 x 1080 |
1920 x 1080
|
|
Frame rate, Hz
|
– | – | – |
|
Optics
|
|
|
|
|
Objective lens
|
16mm | 16mm | 50mm (70mm) |
|
Magnification, x
|
4x – 14x | 4x – 14x |
4.5x – 9x (6.5x – 13x)
|
|
Field of view (HxV), degrees / m @ 100mtrs
|
– | – | – |
|
IR Illuminator
|
|||
|
IR Wave length
|
850nm or 940nm | 850nm or 940nm | 850nm or 940nm |
|
IR Power, w
|
5 | 5 | 5 |
|
IR Detecting distance, m
|
300 | 300 | 350 |
|
Display
|
|
|
|
|
Resolution, pixels
|
1024 x 768 OLED | 1024 x 768 OLED | 1024 x 768 OLED |
|
Colour Palettes
|
Day / Night mode | Day / Night mode | Day / Night mode |
|
Range Performance
|
|
|
|
|
Detection range (person), m
|
300 (IR range)
|
300 (IR range) |
350 (IR range)
|
|
Laser Rangefinder
|
|
(LRF optional)
|
|
|
Safety class for laser equipment according to IEC 60825-1:2014
|
–
|
–
|
–
|
|
Wavelength, nm
|
–
|
–
|
–
|
|
Max. measuring range, m
|
–
|
–
|
1200
|
|
Measurement accuracy, m
|
–
|
–
|
–
|
|
Min. Measuring Range, m
|
–
|
–
|
3.5
|
|
Reticle
|
|
|
|
|
Picture in Picture
|
–
|
–
|
2x upto 18x (upto 26x)
|
|
Number of preloaded reticles
|
–
|
–
|
|
|
Number of Zero Profiles available
|
–
|
–
|
|
|
Wireless Connection
|
WiFi
|
WiFi
|
WiFi
|
|
Recording
|
Photo & Video (Micro SD card)
|
Photo & Video (Micro SD card) | Photo & Video (Micro SD card) |
|
Environmental Characteristics
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 |
|
Power Supply
|
|
||
|
Output voltage, V
|
3.7 | 3.7 | 3.7 |
|
Battery type
|
18650 Li-ion | 18650 Li-ion | 18650 Li-ion |
|
Operating time on battery pack (at t=22°C), h *
|
>6 | >8 | >6 |
|
External power supply, V
|
– | – | – |
|
Connections and Compatibilities
|
|
|
|
|
Max. recoil power on firearm
|
6000 joules | 6000 joules | 6000 joules |
|
Mounting brackets on firearm
|
45/48mm scope adapter | 45/48mm scope adapter | picatinny rail mount |
|
Weight & Size
|
|
|
|
|
Dimensions, mm
|
106 x 97 x 47 | 102 x 75 x 118 | 182 x 71 x 57 |
|
Weight, kg
|
0.25
|
0.27 |
0.44 (0.45)
|
|
Warranty
|
2 years
|
2 years |
2 years
|
|
Trade Data
|
|
|
|
|
SKU (Model #)
|
NV007V | NV007S | NV008S (LRF) |
