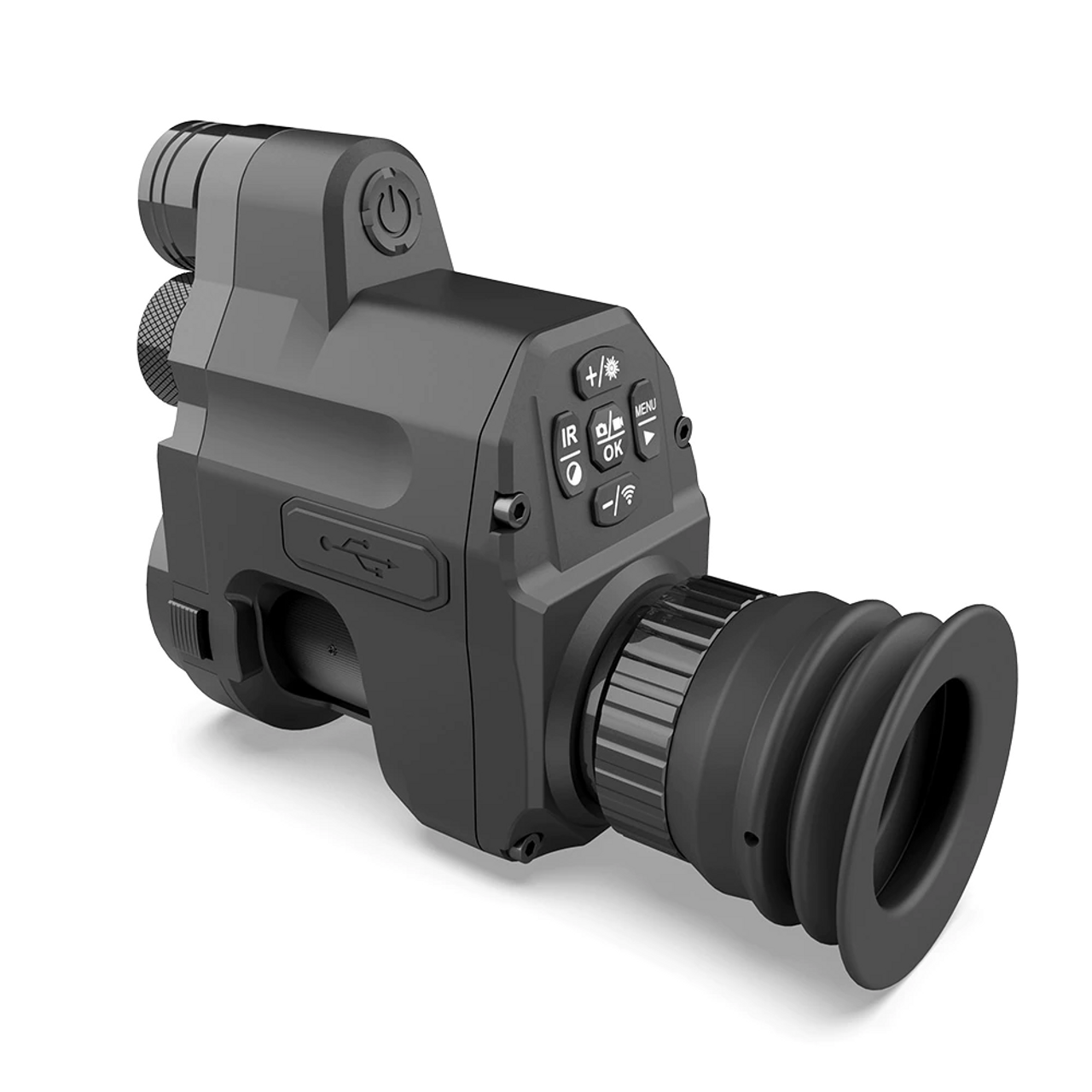

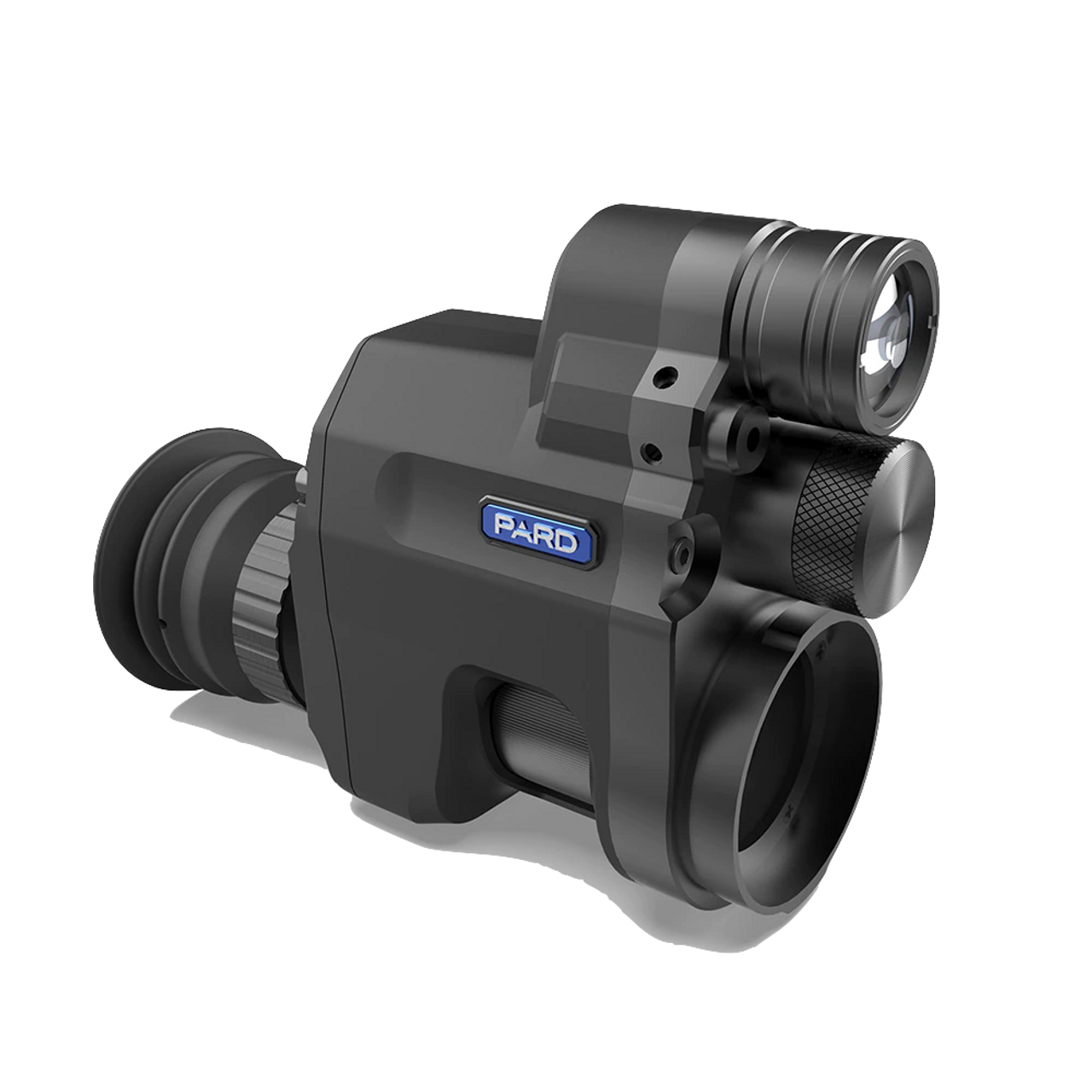

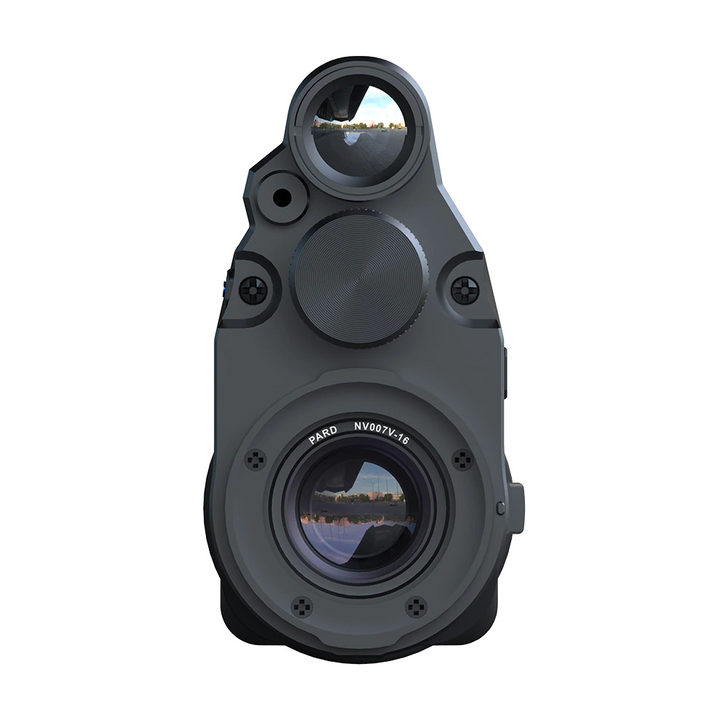

NV007V – Digital Night Vision Clip-on Attachment by PARD
The Pard NV007V is a redesign of the trusted NV007A with all the great attribute of the original with a new outside shape. It is a light weight rear mounted night vision add on that allows you to quickly and easily convert your day scope into a state of the art night vision rifle scope for close and long range hunting day or night. Now with a new upgraded Sony OLED screen, which uses less power than the earlier version. No need to dedicate a rifle to night vision, the Pard NV007V provides a high tech solution. Simply attach onto the rear of your rifle scope instantly converting it to night vision. With 1080P HD colour day-time video recording and 1080P HD night-time video recording direct to the internal micro SD card.
Key Features;
- 1920×1080 (1080p) optical sensor
- 16mm objective lens, 4.0x base magnification
- 850nm / 940 nm IR illuminator options (5 watt)
- Optical Laser Pointer
- Mounts to rear of your day scope with adapter (45mm included)
- 1x 18650 removeable battery (+8hrs operating time)
- Micro SD storage for media recording, WiFi connectivity
PARD NV Product Specifications;
| MODEL |
NV007V |
NV007S |
NV008S (LRF) |
|
Optical Sensor
|
1920 x 1080
|
1920 x 1080
|
1920 x 1080
|
|
Objective lens
|
16mm
|
16mm
|
50mm (70mm)
|
|
Magnification, x
|
4x – 14x | 4x – 14x |
4.5x – 9x (6.5x – 13x)
|
|
Field of view (HxV), degrees / m @ 100mtrs
|
– | – | – |
|
Detection range, m
|
300 (IR range)
|
300 (IR range) |
350 (IR range)
|
|
Sensor
|
|||
|
Type
|
–
|
– |
–
|
|
Resolution, pixels
|
1920 x 1080 | 1920 x 1080 |
1920 x 1080
|
|
Frame rate, Hz
|
– | – | – |
|
Optics
|
|
|
|
|
Objective lens
|
16mm | 16mm | 50mm (70mm) |
|
Magnification, x
|
4x – 14x | 4x – 14x |
4.5x – 9x (6.5x – 13x)
|
|
Field of view (HxV), degrees / m @ 100mtrs
|
– | – | – |
|
IR Illuminator
|
|||
|
IR Wave length
|
850nm or 940nm | 850nm or 940nm | 850nnm |
|
IR Power, w
|
5 | 5 | 5 |
|
IR Detecting distance, m
|
300 | 300 | 350 |
|
Display
|
|
|
|
|
Resolution, pixels
|
1024 x 768 OLED | 1024 x 768 OLED | 1024 x 768 OLED |
|
Colour Palettes
|
Day / Night mode | Day / Night mode | Day / Night mode |
|
Range Performance
|
|
|
|
|
Detection range (person), m
|
300 (IR range)
|
300 (IR range) |
350 (IR range)
|
|
Laser Rangefinder
|
|
(LRF optional)
|
|
|
Safety class for laser equipment according to IEC 60825-1:2014
|
–
|
–
|
–
|
|
Wavelength, nm
|
–
|
–
|
–
|
|
Max. measuring range, m
|
–
|
–
|
1200
|
|
Measurement accuracy, m
|
–
|
–
|
–
|
|
Min. Measuring Range, m
|
–
|
–
|
3.5
|
|
Reticle
|
|
|
|
|
Picture in Picture
|
–
|
–
|
2x upto 18x (upto 26x)
|
|
Number of preloaded reticles
|
–
|
–
|
|
|
Number of Zero Profiles available
|
–
|
–
|
|
|
Wireless Connection
|
WiFi
|
WiFi
|
WiFi
|
|
Recording
|
Photo & Video (Micro SD card)
|
Photo & Video (Micro SD card) | Photo & Video (Micro SD card) |
|
Environmental Characteristics
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 |
|
Power Supply
|
|
||
|
Output voltage, V
|
3.7 | 3.7 | 3.7 |
|
Battery type
|
18650 Li-ion | 18650 Li-ion | 18650 Li-ion |
|
Operating time on battery pack (at t=22°C), h *
|
>6 | >8 | >6 |
|
External power supply, V
|
– | – | – |
|
Connections and Compatibilities
|
|
|
|
|
Max. recoil power on firearm
|
6000 joules | 6000 joules | 6000 joules |
|
Mounting brackets on firearm
|
45/48mm scope adapter | 45/48mm scope adapter | picatinny rail mount |
|
Weight & Size
|
|
|
|
|
Dimensions, mm
|
106 x 97 x 47 | 102 x 75 x 118 | 182 x 71 x 57 |
|
Weight, kg
|
0.25
|
0.27 |
0.44 (0.45)
|
|
Warranty
|
2 years
|
2 years |
2 years
|
|
Trade Data
|
|
|
|
|
SKU (Model #)
|
NV007V | NV007S | NV008S (LRF) |
