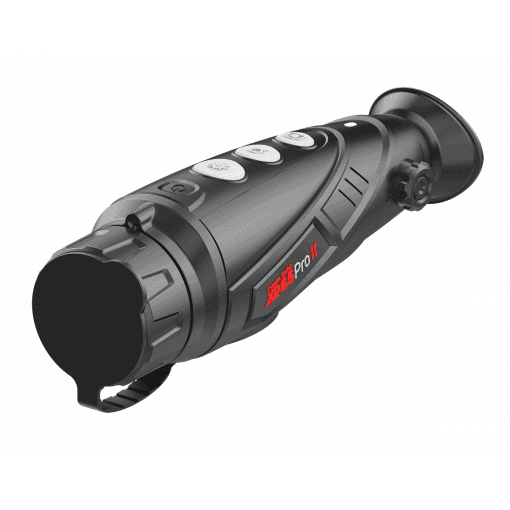

Meet the all new Night Tech XD-65 II Pro Stealth Series Thermal Monocular
Based on the proven performance and popularity of our XD series we thought it was time to take things to a whole new level with the launch of our new XD-II Stealth Series. New models feature improved image quality thanks to the 12μm pixel sensors, greater base magnifications for up to 40% increases in detection ranges, combined with 50% better battery life these units are big improvement. The units still include built in photo and video recording and now have more memory with 16GB, 1280×960 HD screens, and Wi-Fi on all models as standard (except XD-Mini). The Stealth Series brings some new models with the option of higher resolution 640×512 sensors and the proven and superior image quality of our propriety XST sensors. The Night Tech Stealth Series XD-II thermal monoculars have been developed for a variety of applications including the outdoors, hunting, marine, security, law enforcement and surveillance.
Stealth XD-II Improvements
- 12μm pixel sensors
- Greater base magnifications
- Increase in detection distances by 40%
- 50% better battery life
- Includes a Laser Pointer
- Now with 3-year Warranty
XST Technology
XST Technology combines superior VOX sensor technology with advanced image processing algorithms which means you can detect objects at greater distances and identify them with better accuracy. Enjoy class-leading performance with images that are up to 3 times sharper and more sensitive than other thermal products on the market.
Features
- Simple and easy to use
- High-resolution 1280 x 960 pixel HD display
- 12μm pixel pitch sensors in 384 x 288 and 640 x 512 resolution
- XST Technology providing exceptional image quality and clarity
- Thermal detection ranges out to 3500 meters for a Deer
- Rugged, reliable and built to last
- Multiple thermal colour pallets including black, white, red hot and colour mode
- Wi-Fi capability for live streaming, data transfer via Android and iOS App
- Hot spot tracking
- Stadiametric rangefinder for object distance detection
- High image refresh rate of 50Hz
- Low F numbers of F1.0 to F1.2 to allow maximum IR light on to the thermal sensor for the best possible image quality
Specifications
| NT Model | XD35-II | XD50-II | XD50 Pro-II | XD65 Pro-II |
| Magnification (approx) | 2.5x – 10.0x | 3.5x-14x | 2.1x-8.4x | 3.0 x-12.0x |
| Sensor and processor | XST Technology | |||
| Display resolution | 1280×960 HD | |||
| Detection range (person) | 1300m | 1800m | 1800m | 2600m |
| Detection range (deer) | 1800m | 2500m | 2500m | 3500m |
| NETD, mk | ≤35 | |||
| Frame rate | 50Hz | |||
| Resolution | 384×288 | 640×512 | ||
| Comparable focal length* | 35mm | 50mm | 50mm | 65mm |
| Pixel size, μm | 12μm | |||
| Field of view | 10.5°×7.9° | 7.5°×5.7° | 12.5°×10.0° | 8.8°×7.0° |
| F Number | F1.0 | F1.0 | F1.0 | F1.2 |
| Objective lens size mm | 25mm | 35mm | 35mm | 50mm |
| Thermal Colour palettes | 5 | |||
| Battery | Internal USB rechargeable | |||
| Max battery life (power saving) | up to 7hrs | up to 6hrs | ||
| IP rating | IP66 | |||
| Weight (without batteries) | 420g | 500g | ||
| Dimensions (mm) | 181x65x64 | 186x65x64 | 186x65x64 | 202x65x64 |
| Data interface | Wi-Fi / App / USB Cable | |||
| External power supply | Via USB cable, includes charging | |||
| Wi-Fi | Included | |||
| Stadiametric range finder | Included | |||
| Video recording | Internal 16GB photo and video | |||
| Conformance | CE / RoHS | |||
| Warranty | 3 Years | |||
*Comparable Focal length is based on competitors’ typical focal lengths of F1.2-1.5 and the given lens diameter. The Night Tech Stealth Series uses lower F numbers of between F1.0-F1.2 to reduce the focal length, compared with our competitor’s products that use a higher F number with the same size lens to give a larger focal length number. We have lower F Numbers in order to provide the maximum amount of IR light to the thermal sensor, thus improving the image quality.
