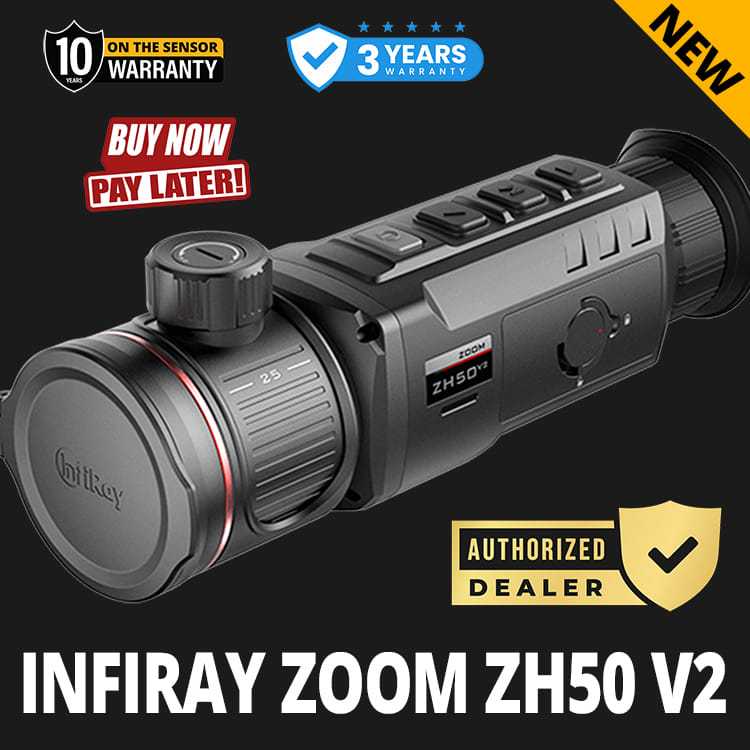

InfiRay, the leader in thermal cameras, has once again delivered innovation to the market with their latest offering, the InfiRay Zoom ZH50 V2 dual field of view monocular. As pioneers of dual field of view technology the new Zoom ZH50 V2 sets itself apart from the competition by:
- Dual FOV versatile that allows you to adjust the field of view according to your needs.
- No need to refocus the device, as it offers a seamless switch between the two fields of view.
- Ultra-clear imaging provided by the Zoom ZH50 V2 will give you an unparalleled view of your surroundings.
- Supplied with two battery packs, providing extended battery life, making it perfect for extended trips.
If you’re looking for a device that can take your hunting experience to the next level, the InfiRay Zoom ZH50 V2 is the thermal monocular you need.
No Refocus & Seamless Switching
Just 2 steps for seamless switching between dual-field of view: Sharp picture quality can be achieved with only one-time focus; twist the focus ring for seamless switching between dual-field of view, and the sharp image quality can continue to be maintained without refocusing.
The wider FOV with a focal length of 25mm can be used for search while the narrow FOV with a focal length of 50mm can be used for identification.
12µm Sensor with NETD ≤25mK
ZH50 V2 is equipped with an uncooled vox 12um 640×512 high-resolution sensor featuring NETD ≤25mK. With the powerful sensor and image algorithm, better image quality is provided.
AMOLED 1440×1080 Display
ZH50 V2 adopts a 1440×1080 FHD AMOLED display which offers better layers and contrast, the observation effect is more excellent.
4X Base Magnification
High-resolution AMOLED display with a high-magnification optical system provides clearer picture quality and more excellent observation experience. You can freely choose either 2x or 4x base magnification. Clearer observation and identification at long distances can be achieved with 4x base magnification.
Long Detection Range
With advanced imaging sensor and lens，detection range of a 1.7m target can reach up to 2600m.
Long Battery Life
Using low-power components, and lower power consumption, with a standard additional battery pack and a replaceable 4400mAh large-capacity lithium battery pack, battery life of up to 20 hours.
Photo/Video/MIC/32GB
The built-in Mic of ZH50 V2 supports synchronized audio input. It is built with memory of 32GB which can support storing video and pictures. Built-in WiFi module supports APP connection and media transmission.
Ultra-clear Mode
Even in heavy fog and rain, the built-in ultra-clear mode can also guarantee clear imaging through a more detailed field of view and enhanced object identification capabilities.
5 Color Palettes
ZOOM ZH50 V2 provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.
| Model | ZH50 V2 |
| Detector Specifications | |
| Type | Uncooled Vox |
| Resolution，pixels | 640×512 |
| Pixel size，μm | 12 |
| NETD，mk | ≤ 25 |
| Frame rate，Hz | 50 |
| Optical Specifications | |
| Objective Lens，mm | 25/50 |
| Field of View（H×V），° | 17.5×13.1 / 8.8×6.6 |
| Linear Field of View（H×V），m at 100m | 31×23 / 15×12 |
| Magnification, × | 2~8 / 4~16 |
| Detection Range，m（Target size：1.7m×0.5m，P(n)=99%） | 1300 / 2600 |
| Eye Relief，mm | 20 |
| Exit pupil Diameter，mm | 5.5 |
| Diopter,D | -5 ~ +5 |
| Display Specifications | |
| Type | FHD AMOLED |
| Resolution,pixels | 1440×1080 |
| Battery Power Supply | |
| Battery | Replaceable li-ion battery Pack IBP-1/4400Ah |
| Max. operating Time(22℃)*，h | 10 |
| External Power Supply | 5V (Type C) |
| Physical Specifications | |
| Wi-Fi/APP | Support (InfiRay outdoor) |
| Photo/Video Recorder | Support |
| MIC | Support |
| Memory Capacity | 32GB |
| IP rating | IP67 |
| Operating Tempeture，℃ | -20 ~ +50 |
| Weight，g | ≤710 |
| Dimension，mm | 220×59×75 |
